HP-3-MD

Tomacorriente; redondos; Chasis macho; PIN: 3; 25A; termoplástico; HP; IP54

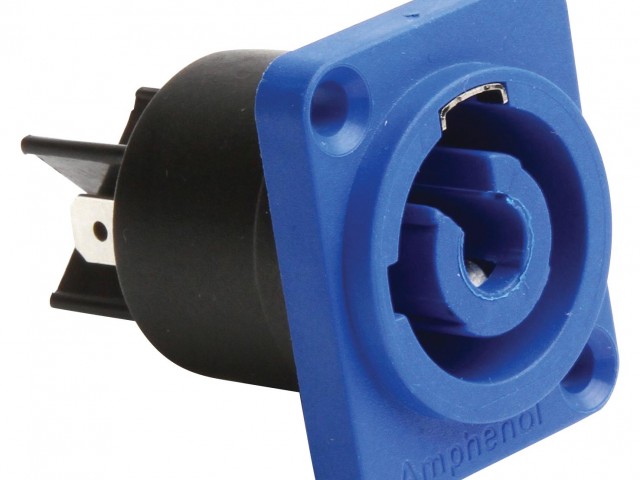

The HP-3-MD from Amphenol is part of the HP Series of connectors suitable for AC power supply. Rated at 25A / 250VAC this 3 pole (2 + PE) chassis power connector is keyed and colour coded for power-in (Blue).

3 Pole (2 + PE) chassis connector
Blue thermoplastic shell, keyed for power-in
Solder Tab 3/16” contact
Industry standard mating
Flammability rated UL94V-0
Rated operating voltage 250VAC
Current carrying capacity 25A
Operating temperature range -25°C to +75°C
UL, cUL recognized components (File no. E339831)

Notas al pie

Note: The HP series of connectors are not designed to be "Hot Plugged" and so are without “Breaking Capacity”. In other words, the connectors should not be connected or disconnected live or when under load.
