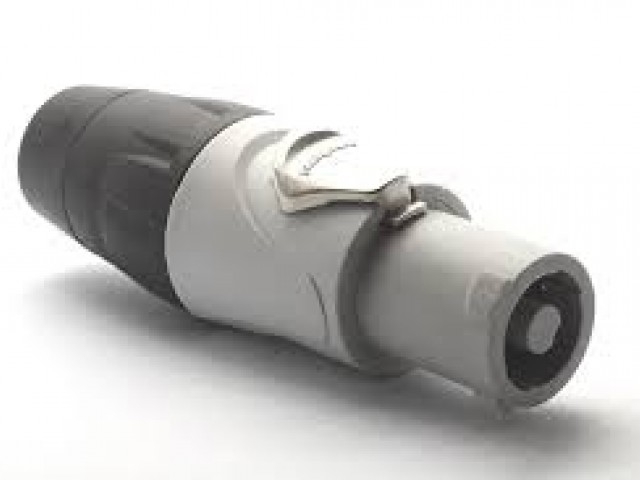

HP-3-FG

Conector de Alta Potencia, Salida de Potencia Llave Gris, HP Series, Macho, 250 VAC, 25 A

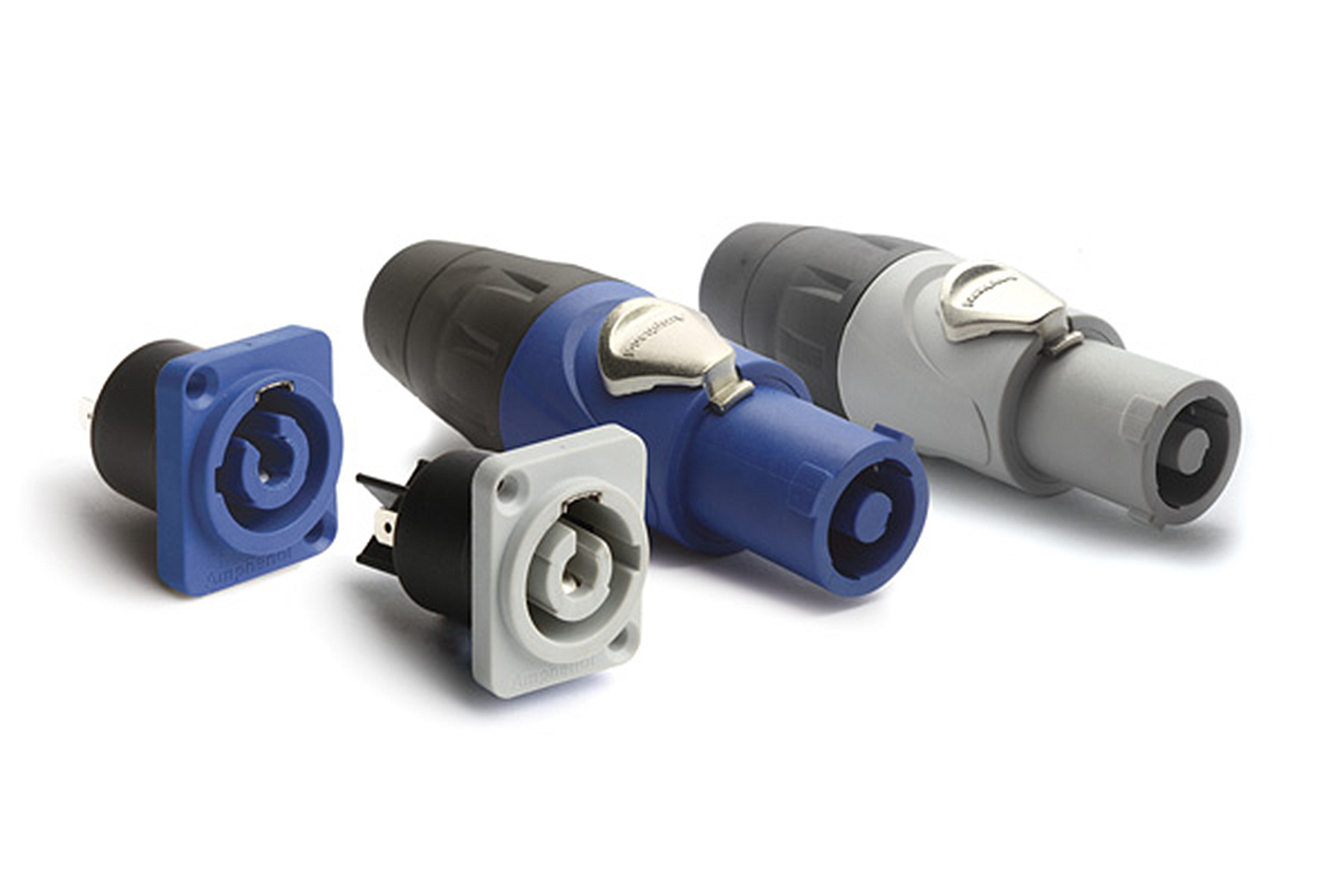

The HP-3-FG from Amphenol is part of the HP Series of connectors suitable for AC power supply where a latch locking connector is required. Rated at 25A / 250VAC this 3 pole (2 + PE) cable power connector is keyed and colour coded for power-out (Grey).

Quick release, vibration resistant latch lock
3 Pole (2 + PE) cable connector
Durable thermoplastic housing
Grey sleeve keyed for power-out
Screw terminals
Chuck type cable clamp
Flammability rated UL94V-0
Rated operating voltage 250VAC
Current carrying capacity 25A
Operating temperature range -25°C to +75°C
UL, cUL recognized components (File no. E339831)

Notas al pie

Note: The HP series of connectors are not designed to be "Hot Plugged" and so are without “Breaking Capacity”. In other words, the connectors should not be connected or disconnected live or when under load.
